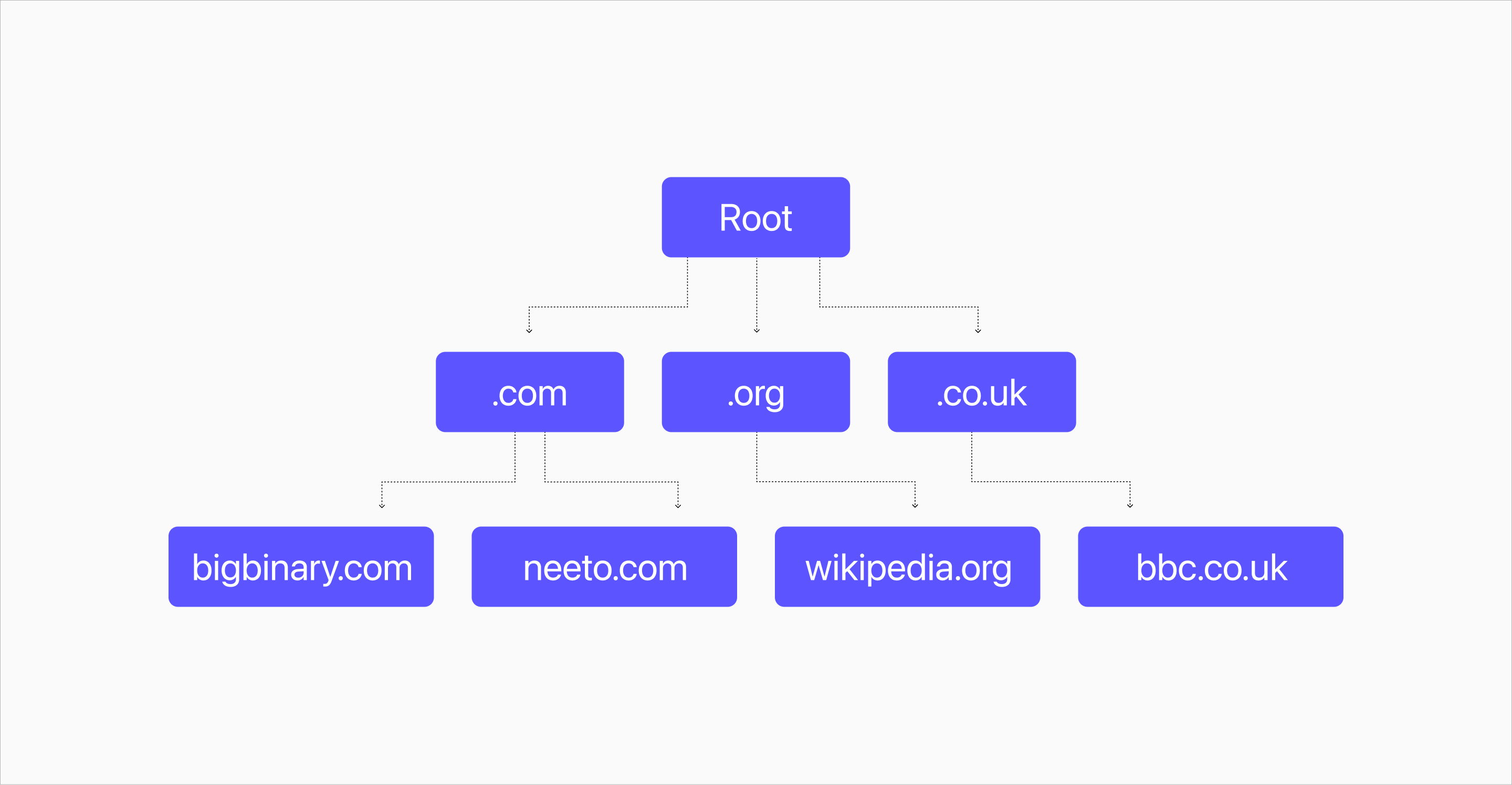

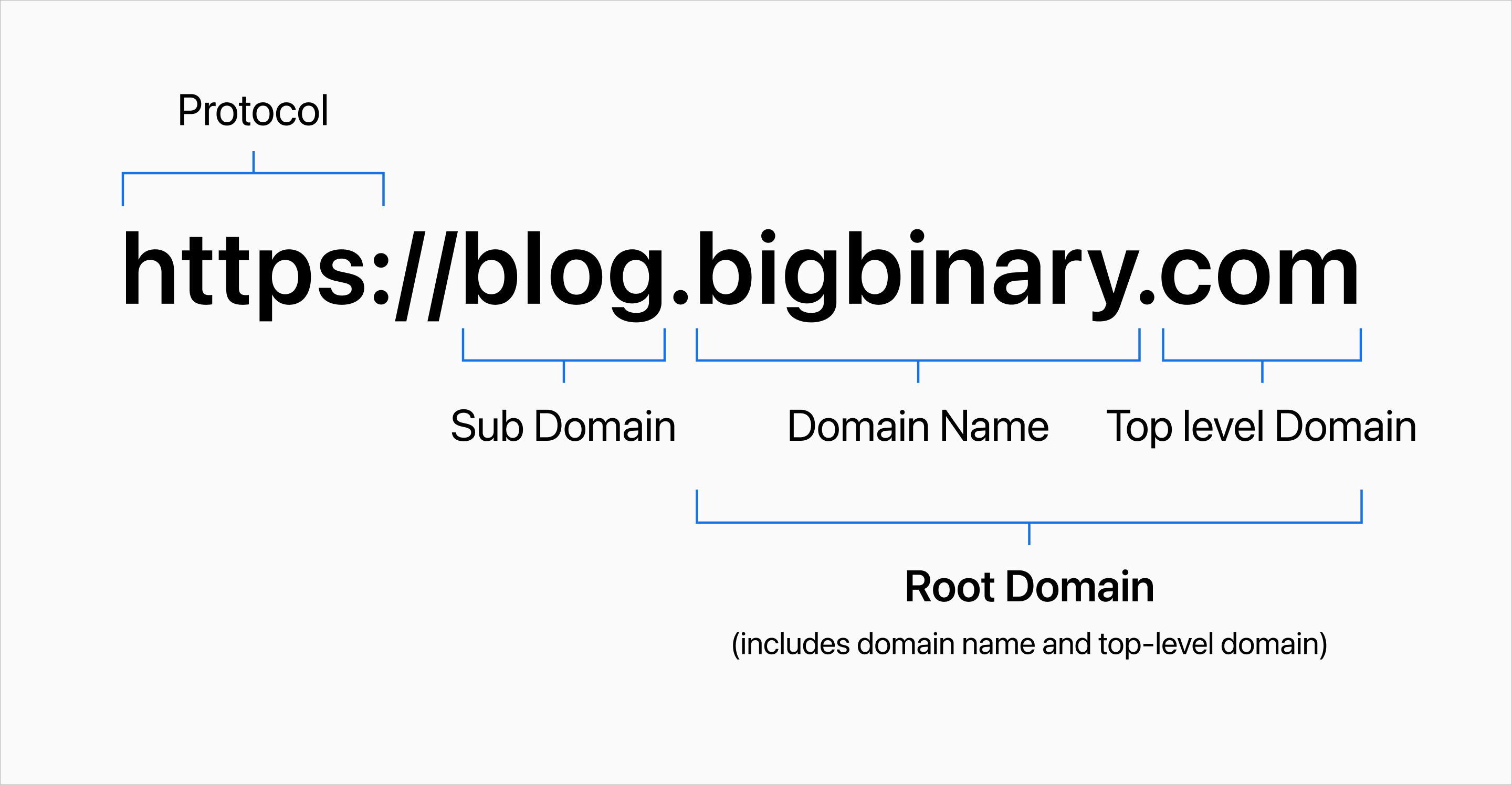

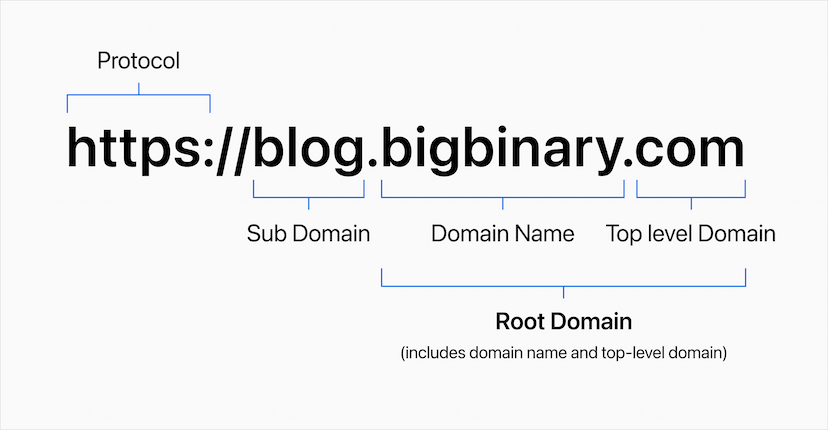

--- title: "DNS basics and how DNS works in Neeto" description: "DNS basics and how DNS works in Neeto" canonical_url: "https://www.bigbinary.com/blog/dns-basics-and-how-dns-works-in-neeto" markdown_url: "https://www.bigbinary.com/blog/dns-basics-and-how-dns-works-in-neeto.md" --- # DNS basics and how DNS works in Neeto DNS basics and how DNS works in Neeto - Author: S Varun - Published: January 6, 2026 - Categories: Neeto This blog started with an explanation of how DNS works in [Neeto](https://neeto.com). However we covered a lot of ground about how DNS actually works. # The Basics of DNS Records A Domain Name System (DNS) is a hierarchical and decentralized naming system for computers and servers connected to the Internet. It essentially translates human-readable domain names into machine-readable IP addresses. ## What is a Domain Name? A Domain Name is a unique, human-friendly label used to identify one or more IP addresses. It's what people type into a web browser to visit a website. For example, `google.com` and `wikipedia.org` are domain names. ## Purchasing a New Domain Name You don't buy a domain name outright. Technicall,y you register the right to use it for a specified period (typically 1 to 10 years) from a Domain Name Registrar. These are called "registrars" because you are registering the right to use the domain name. Popular Domain Name Registrars are GoDaddy, Namecheap, Cloudflare and Porkbun. ## DNS Records: Types and Uses DNS Records provide information about a domain, primarily mapping hostnames to IP addresses. There are many different types of DNS records. We would be looking at the important ones. ### A Record "A record" stands for "Address record". It maps a domain name (like google.com) to an IPv4 address (like 93.184.216.34). ### AAAA Record This does exactly the same thing as A record but for the IPv6 address. Four As signifies a bigger address range. ### CNAME Record "CNAME record" stands for "Canonical Name Record". Instead of pointing directly to an IP address like an A record does, a CNAME points one hostname to another hostname. An example of CNAME record could be: `blog.bigbinary.com` -> `bigbinary.github.io`. What CNAME is saying here is that if you are visiting `blog.bigbinary.com`, then this record doesn't have the IP address information. If you want an IP address, then ask for that info from `bigbinary.github.io`. Remember that IP addresses are provided by A and AAAA records. Another way of looking at it is that an A record provides “the IP address,” while CNAME provides the address of the next machine to which we can ask for the IP address. Please note that it is quite possible that the next machine might have another CNAME and that in turn might have another CNAME. The main point is that CNAME keeps the record of the next machine to ask for. In the end, some machine has to have an A or AAAA record so that a domain is mapped to an IP address. ### MX Record "MX Record" stands for "Mail Exchanger Record". It specifies the mail servers responsible for accepting email messages on behalf of of a domain. ### TXT Record A TXT record (Text record) lets a domain owner store arbitrary text data in DNS. Other services then look up that text to verify ownership, check email policies, etc. Think of it like a sticky note that the domain owner can add for others to read. Here are some use cases of the TXT record: #### Adding SPF records ```sh bigbinary.com. IN TXT "v=spf1 ip4:198.51.100.10 include:_spf.google.com -all" ``` #### Domain verification Here is an example of site verification by Google Site. ```sh bigbinary.com. IN TXT "google-site-verification=asduiashd9812h98asdh" ``` #### Adding DMARC records ```sh _dmarc.bigbinary.com. IN TXT "v=DMARC1; p=reject; rua=mailto:dmarc@example.com" ``` ### NS Record NS stands for "Name servers". Let's say that a user types in the URL `https://blog.neeto.com`. The job of the DNS system is to ultimately find an IP address to which the request can be sent. Now, let's think about how to go about searching for the IP address. We need to ask some machine for more information about `blog.neeto.com`. That information could be a CNAME record, an A record, or a AAAA record. But the problem is who should be asked. From where we start the journey. That's where the NS record comes into the picture. Remember, each domain is registered with a registrar. So that's where the DNS system starts the journey. First, DNS will ask the registrar of the domain, "Hey, can you give me the Name servers to whom I can start asking questions?" Let's take a practical case and execute the following command on the terminal: ```sh whois neeto.com ``` We'll get a lot of data, but we want to concentrate on the following six lines: ```sh Domain Name: NEETO.COM Registrar WHOIS Server: whois.cloudflare.com Registrar: Cloudflare, Inc. Registrar URL: https://www.cloudflare.com Name Server: BARBARA.NS.CLOUDFLARE.COM Name Server: YEW.NS.CLOUDFLARE.COM ``` We can see that the Registrar for neeto.com is "Cloudflare". We also see that the Name servers are two servers, which are also `clouflare.com`. The people who designed name servers dictated that there should always be at least two name servers. In this way, if one of them goes down for any reason, the overall system is still working. Taking our example of `blog.neeto.com`, if we need a CNAME record, an A record, or a AAAA record, then we need to start asking those questions to these two name servers. Now let's do the same experiment with another domain. This time, we will choose `https://bigbinary.com`. ```sh whois bigbinary.com ``` This time, we will get the following lines. ```sh Domain Name: BIGBINARY.COM Registrar: GoDaddy.com, LLC Registrar WHOIS Server: whois.godaddy.com Registrar URL: http://www.godaddy.com Name Server: BARBARA.NS.CLOUDFLARE.COM Name Server: YEW.NS.CLOUDFLARE.COM ``` Notice that this time the registrar is `GoDaddy`, but the Name servers are `cloudflare.com`. This is because `bigbinary.com` is registered with `GoDaddy`. When a domain is purchased from a registrar, the default values of the name servers will point to the registrar's name servers. So after the initial registration, `bigbinary.com` had the GoDaddy name servers, but has chosen not to use them. With the help of NS records, BigBinary has told GoDaddy that BigBinary doesn't want to use GoDaddy's name servers and wants GoDaddy to use the Cloudflare name servers. This will mean that all the future DNS records for `bigbinary.com` can be maintained in Cloudflare. This goes on to show that one is not restricted to the name servers of the registrars. Name servers, just like CNAME records, never point to an IP address. They always point to another host name. ## Different parts of a URL ![Different parts of a URL](https://www.bigbinary.com/blog/images/images_used_in_blog/2026/dns-basics-and-how-dns-works-in-neeto/different-parts-of-domain2.png) ### Protocol The protocol is the initial part that specifies the set of methods used for transferring data between a web browser and a server. The server essentially tells the browser how to communicate. The most common protocols are `http` (Hypertext Transfer Protocol) and its secure version `https` (Hypertext Transfer Protocol Secure). #### Top-Level Domain (TLD) A Top-Level Domain (TLD) is the very last part of a domain name, located after the final dot. For example, in google.com the `.com` is the Top-Level Domain (TLD). Common TLDs are `.com`, `.org`, `.net` etc. ### Subdomain A subdomain is a label that comes before the main part of a domain name. For example, in the address blog.bigbinary.com the `blog` is the subdomain. We can have `a.b.c.d.e.f.blog.bigbinary.com`. Technically upto 127 levels of subdomain is allowed. #### Root domain A root-level domain is the base name of a website. For example, in `www.google.com` the `.com` part is the TLD and `google.com` part is the root level domain. ### Strange case of www subdomain Let's say that we registered a brand new domain called `spinjudo.com` with Cloudflare. We have our marketing site up and running on Vercel, and we want to host our blog on WordPress. So we will add these two DNS records. For our marketing site, we will add a CNAME record something like this: ```sh spinjudo.com IN CNAME 76.76.21.21 ``` And then for the blog, we will add another CNAME record something like this: ```sh blog IN CNAME domains.wordpress.com. ``` So now both `https://spinjudo.com` and `https://blog.spinjudo.com` are working. But what about `https://www.spinjudo.com`. Developers often forget that users can type `https://spinjudo.com` or they can also type `https://www.spinjudo.com`. Time to time in your life, you might have come across cases where a site is working only with `www` or only without `www`. That's because the developers either took care of `www` and forgot to take care of the root domain or the developer took care only of the root domain and not of `www`. Technically, `www` is a subdomain and that needs to be taken care of too. In this case for `spinjudo.com` we need to add one more CNAME record for `www` and that might look like this: ```sh www IN CNAME 76.76.21.21 ``` ## Rules regarding CNAME records The first rule is that CNAME records can **only** be added to subdomains. It means CNAMES can't be added to root domains. That's the rule. However, some DNS providers allow a technique to bypass this rule. They provide a different type of record called "ANAME" record which allows CNAME for root domains. In general, we advise against using ANAME records. The second rule is that if a subdomain has a CNAME record, then that subdomain can't have any more records. ## Why do we need to wait for some time after updating the domain If you change anything related to DNS you are asked to wait 24 to 48 hours for the change to propoage. What does that mean? If you type www.neeto.com into your browser, it uses its DNS cache. The browser might not even ask anyone what the ip address of www.neeto.com is. This is because maybe 20 seconds ago you visited www.neeto.com and now you refreshed the page. If the browser really needs an updated DNS value, then the browser will send that request to your laptop. Your laptop has a DNS cache. Your laptop might not ask anyone for the updated DNS value for a while. Now, if the laptop needs to know the DNS valu,e then the laptop will ask for an ansewr to the root servers. There are only 13 root servers in the world. These root servers are named from "A" to "M". However just because there are 13 root servers it doesn't mean that there are only 13 servers. Each of those 13 root servers are running behind lots of physical servers. The complete list of physical servers can be found at https://root-servers.org. Root servers do not know the answer to every question. However, they do know the address of the servers that can answer your questions. For example, if your TLD is `.com`, then the root server will send you to a different server. If your TLD is `.net` then you will asked to go to a different machine. Similarly, there are servers to serve TLDs like `.co.uk`, `.in` etc. ![Domain hierarchy](https://www.bigbinary.com/blog/images/images_used_in_blog/2026/dns-basics-and-how-dns-works-in-neeto/domain-hierarchy.png) Note that at each layer, there is some amount of DNS caching. To ensure that the updated value is completely updated throughout the Internet of the whole world we need to give some time for the old cached value to be removed. The way these servers work also shows the decentralized nature of DNS. There is no one single place where all the DNS values of the world is stored. DNS values are stored at different places, but there is a path to get to those values all the way from the root servers. ## neeto-custom-domains-frontend package Adding a custom domain could be intimidating. People are asked to change DNS records, which they might not have touched for years. A small misconfiguration has the potential to bring the whole website down. To ensure that the user experience of adding a "custom domain" is great, we at [Neeto](https://neeto.com) decided to go the extra mile. We bought one domain each at the following name registrars: - Cloudflare - Namecheap - Hostinger - Digital Ocean - Wix - Porkbun - Squarespace - AWS route 53 - Network solutions - Godaddy - Strato - Microsoft 365 We checked out how they ask their users to make DNS entries and we captured the screenshots. Now, depending on what "name server" the user is dealing with we display a help message and help screens customized for that user. For example, if a user is using Cloudflare as their name server then the help screen might look like this. ![Adding custom domain for cloudflare](https://www.bigbinary.com/blog/images/images_used_in_blog/2026/dns-basics-and-how-dns-works-in-neeto/custom-domain-neeto-help-for-cloudflare.png) Notice that the above image has a column called "Proxy" which is cloudflare specific. If the domain registrar is GoDaddy then the help screen might look like this. ![Adding custom domain for GoDaddy](https://www.bigbinary.com/blog/images/images_used_in_blog/2026/dns-basics-and-how-dns-works-in-neeto/dns-in-neeto-godaddy.png) At [Neeto](https://neeto.com) we build a number of products and almost all the products need the feature of "custom domain". To share the code related to domain handling in a consistent manner, we have built a utility tool named `neeto-custom-domains-engine`. When a user adds a domain to the Neeto product, this tool finds the name server of that domain. Then we check if we have the custom help screen and help instructions for that name server or not. If we don't, then we provide generic help instructions. ## Validating DNS records Now that the user has added the custom domain, Neeto needs to verify that those DNS records are indeed added. If a user tries to add the domain `www.spinjudo.com`, then Neeto will ask the user to add following CNAME for `www`. | Name | value | | ---- | ---------------------- | | www | dns.neetodeployapp.com | Now, let's assume that the user has added that record. Now we need to verify this record. Let's execute the following command from the terminal. ```sh nslookup -type=CNAME www.spinjudo.com ``` We should see a response similar to this: ```sh Non-authoritative answer: www.spinjudo.com canonical name = dns.neetodeployapp.com. ``` Here We can see that the DNS record has propagated properly for this domain and it's receiving the expected value. Now, let's see how this would look for a record without the proper records added. ```sh nslookup -type=CNAME www.spinjudo2.com ``` This is the response we will get for `spinjudo2`. ```sh Non-authoritative answer: *** Can't find www.spinjudo2.com: No answer ``` This could mean two things. 1. Either the user has not added the records properly. 2. The records have been added, but they have not propagated properly. Sometimes it can take upto 48 hours for the added records to be seen. In this case we saw the example of validating CNAME records. However same process is followed when it comes to validating A records or AAAA records. ## Traefik to route the custom domain Typically, when it comes to deploying an application one can deploy the application using services like Heroku, Render, Railways or directly on cloud services like EC2, GCP, Azure etc. At Neeto, we decided to build NeetoDeploy. It's a service similar to Heroku for our internal use. NeetoDeploy uses [Traefik](https://traefik.io/traefik), which is a leading modern open source reverse proxy. In simple terms, Traefik is a load balancer. All requests come to the load balancer and then the requests are routed to the right place. Earlier, we talked about setting up a custom domain. I have setup custom domain for `https://calendar.spinjudo.com`. As part of setting up a custom domain, I added a CNAME for `dns.neetodeployapp.com`. After adding the CNAM,E Neeto validated the record. Once Neeto determines that the user has correctly added the CNAME then Neeto adds these custom domains to Traefik. In reality, four records are added as shown in the picture. ![Adding domains to traefik](https://www.bigbinary.com/blog/images/images_used_in_blog/2026/dns-basics-and-how-dns-works-in-neeto/spinjudo-traefik.png) In total, we see four records. The first records are "websecure". It means they have `https` turned on. The last two are just `web`. It means they support `http`. Once a request for a domain for `calendar.spinjudo.com` comes, then those requests will be sent to NeetoDeploy's Traefik. Traefik will map that `calendar.spinjudo.com` to an instance of the NeetoCal application and the request will be forwarded to that server. Please note that Traefik doesn't fulfill the request. Traefik acts as a load balancer and sends the request to the right server. ![Traefik handling requests](https://www.bigbinary.com/blog/images/images_used_in_blog/2026/dns-basics-and-how-dns-works-in-neeto/traefik-handling-requests.png) ## Finding the ip address When a user types https://calendar.spinjudo.com, then the browser needs to know the ip address to which to hit. In other words, we ultimately need to know the A record. We can use the tool `dig` to find the final A record value when a user visits https://calendar.spinjudo.com. First, let's see the tool in action. ```sh dig +noall +answer calendar.spinjudo.com A ``` The response we get is following: ```sh calendar.spinjudo.com. 60 IN CNAME dns.neetodeployapp.com. dns.neetodeployapp.com. 60 IN CNAME a7b4fc193275e43ea9ba2b7753b080dc-6ad6aaca90bd0ea4.elb.us-east-1.amazonaws.com. a7b4fc193275e43ea9ba2b7753b080dc-6ad6aaca90bd0ea4.elb.us-east-1.amazonaws.com. 60 IN A 34.233.85.113 ``` The first line is a CNAME to `dns.neetodeployapp.com`. The second line is a CNAME to an EC2 instance on AWS. The third line is an A record, which gives us the ip address of the machine. In the above command, we used `+noall` and `+answer`. The `+noall` is really useful. It means "just hide all the output". By default, `dig` output spits a lot of information. By using `+noall` we tell `dig` to go on quite mode. And then we tell `dig` to show data for the "answer" section by using `+answer`. Similarly, using `dig +noall +authority` will show only the data about the "authority" section. ## Issuing SSL certificate We know that a user can visit http://spinjudo.com or the user can also visit https://spinjudo.com. To serve HTTPS, we need SSL certificates. We can use the user to purchase SSL certificate, configure it and apply it but that would be too cumbersome for our users. To generate SSL certificate we will use [Let's Encrypt](https://letsencrypt.org/) which issues free trusted SSL certificates. SSL certificates are issued using the Automatic Certificate Management Environment (ACME) protocol by Let's Encrypt. This is a simple protocol by which the service can verify the authenticity and ownership of the requested website. The process of domain validation, issuinga certificate and then renewing certificate could be a bit daunting. To make life easier, Let's Encrypt has provided [certbot](https://certbot.eff.org/). This tool makes it easier to get SSL certificate from Let's Encrypt. It's worth noting that the certificate issued by Let's Encrypt is valid only for 3 months. Before the certificate expires, we need to ask Let's Encrypt to issue a new certificate and that certificate will be valid for another 90 days. ## NeetoCal using Cloudflare [NeetoCal](https://neeto.com/cal) and other Neeto products use Cloudflare as their name servers. If we look at the NeetoCal DNS record, then this is what we see. ![NeetoCal DNS record](https://www.bigbinary.com/blog/images/images_used_in_blog/2026/dns-basics-and-how-dns-works-in-neeto/neetocal-dns-record.png) Adding a `*` in place of the name of the record is known as a wildcard character. This serves as a catch-all for any undefined subdomain, meaning all the subdomains that do not have an explicit DNS record associated with it will be matched by this record. As we can see in the picture above, the `*` value is proxied. What it means is that any attempt to connect to the NeetoCal IP address first hits the Cloudflare server. Cloudflare server runs a bunch of checks on the incoming requests, and then passes that request to the intended IP address. For example, if I'm getting a lot of spammy requests from Spain, then I can configure Cloudflare to prevent requests coming from Spain. Or I can rate limit requests for `/login` url and things like that. If we do not use proxy, then that means the user is directly connecting to the Neeto server and Cloudflare is not in the picture. In this case, if a [DDoS](https://www.cloudflare.com/en-gb/learning/ddos/what-is-a-ddos-attack/) attack happens, then Cloudflare will not be able to protect us. ## Links - [Human page](https://www.bigbinary.com/blog/dns-basics-and-how-dns-works-in-neeto)
